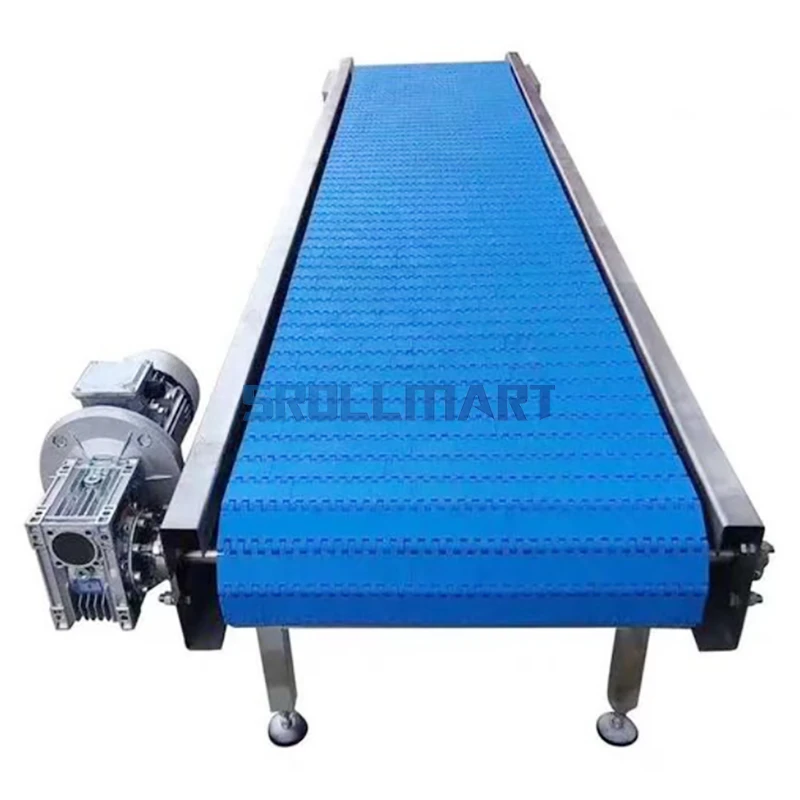

Plastic Modular Belt Conveyor
A Modular Conveyor is a highly versatile and customizable conveying solution built from standardized, interlocking components. Its design allows for easy configuration and adaptation to a wide range of industrial applications.
- Product Introduction
Products Description
A Modular Conveyor is a highly versatile and customizable conveying solution built from standardized, interlocking components. Its design allows for easy configuration and adaptation to a wide range of industrial applications.
Features & Components for Modular Conveyor
Modular Design
The system is constructed from pre-engineered modules (straight sections, curves, merges, transfers) that can be easily assembled, disassembled, and reconfigured. This allows for quick layout changes and future expansion without the need for a complete system overhaul.
01
Belt Types
Plastic Modular Belt: Comprised of interlocking plastic pieces (typically made from materials like POM - Polyoxymethylene, or other engineered plastics). These belts are durable, easy to clean, and resistant to corrosion.
Modular Chain: A heavier-duty option, often metal (such as stainless steel), suitable for demanding applications like bottling, canning, or heavy product transport.
02
Frame Construction
Carbon Steel with Powder Coating: Offers excellent strength and durability at a cost-effective price. The powder coating provides a robust finish that resists chipping, scratching, and corrosion.
Stainless Steel: Ideal for applications requiring high hygiene standards (e.g., food processing, pharmaceuticals) or where resistance to harsh chemicals and moisture is critical.
03
Drive Systems
Sew Eurodrive (SEW Motor): A premium, high-quality, and reliable drive solution known for its efficiency, precision, and quiet operation.
GPG Motor (Gear Motor): A common and cost-effective geared motor solution providing the necessary torque and speed for conveyor applications.
04
Performance Characteristics
Low Noise: The combination of precision-engineered plastic belts and quality drive systems results in exceptionally quiet operation.
High Running Speed: Designed to maintain stability and product integrity even at high throughput speeds, maximizing production efficiency.
05
Applications For Plastic Modular Belt Conveyor
Due to its flexibility and performance, the Modular Conveyor is widely used across various industries, including:
Food & Beverage: Processing, packaging, and bottling lines.
Logistics & Distribution: Parcel sorting, order fulfillment, and warehouse automation.
Packaging: Unit handling, case packing, and palletizing.
Pharmaceuticals: Manufacturing and packaging of medical products.
Automotive: Assembly line part feeding.
| Motor | Belt | Supporting Board | Frame | PLC | Load Capacity |
| drum motor, gear motor | POM | 1.0mm, 1.2mm, 1.5mm, 2.0mm galvanized supporting board | aluminum, carbon steel, stainless steel | Mitsubishi, Simense, Abb | Customzied |
