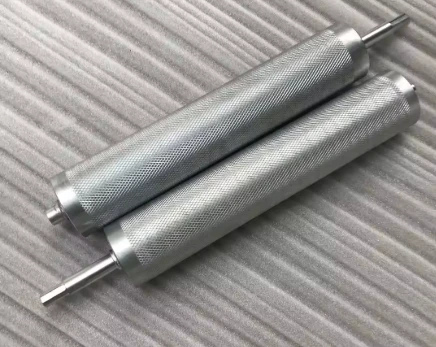

Knurled Belt Driven Roller
Knurled belt driven roller used for driving pvc belt conveyor, made from carbon steel with 5mm above thickness tube, zince plated. Also it is powered conveyor roller driven by chain, not by gravity. It is with different diameter like 76mm,160mm etc, customized based on the drawing.
- Product Introduction
Industrial Grade Knurled Belt Driven Roller - High-Grip Power Transmission Roller
Upgrade your conveyor system with our premium Knurled Belt Driven Roller. Engineered for superior traction and positive grip, this belt-driven roller is the ideal solution for heavy-load, high-torque applications requiring zero slip.
Products Specifications
| Product Type | Knurled Belt Driven Roller / Power Transmission Roller |
| Drive Method | Belt Driven |
| Surface Finish | Knurled (Diamond Pattern) |
| Core Material | Carbon Steel (Grade 1045) |
| Surface Treatment | Zinc Plated or Black Oxide (Optional) |
| Shaft Type | Fixed, Round, or Keyed Shaft Options |
| Bearing Type | Precision Sealed Ball Bearing |
| Load Capacity | Up to 350 lbs (159 kg) per roller |
| Standard Lengths | 12", 18", 24", 36", 48" (Custom lengths available) |
| Outer Diameter (O.D.) | 1.9" (50mm), 2.5" (63.5mm) (Custom diameters available) |
Features & Benefits
Knurled Conveyor Roller
Superior Anti-Slip Traction
The diamond-pattern knurled surface of this power transmission roller provides maximum grip on conveyor belts, eliminating slippage and ensuring consistent, reliable product movement.
01
Heavy-Duty Construction
Built with a robust steel core and a durable, hardened knurled exterior, this industrial roller is designed to withstand demanding environments, high weights, and continuous operation.
02
Efficient Power Transmission
As a belt-driven roller, it efficiently transfers motor power across long conveyor sections with minimal energy loss, making your system more efficient.
03
Pre-Installed Bearings
Equipped with high-quality, pre-lubricated ball bearings for smooth rotation, reduced maintenance, and long service life.
04
Easy Integration & Replacement
Designed to standard dimensions, this knurled conveyor roller can be easily integrated into new systems or used as a direct replacement for worn-out rollers.
05
Detailed Description
Our Knurled Belt Driven Roller is the cornerstone of reliable and efficient conveyor systems. The primary function of this roller is to provide positive drive contact with the belt, ensuring that power from the motor is translated directly into movement without loss.
The knurled design is not just a feature; it's a critical performance enhancer. The raised pattern bites into the underside of the conveyor belt, creating an unparalleled grip that is essential for inclines, declines, and applications involving heavy or bulky items. This makes our knurled drive roller perfect for industries such as logistics packaging, manufacturing assembly lines, and bulk material handling.
As a belt-driven roller, it offers significant advantages over chain-driven or motorized alternatives, including quieter operation, lower maintenance, and more forgiving alignment. This specific conveyor roller is often used as the drive roller at the head of a conveyor or as a snub roller to increase belt wrap and traction on the pulley
Why Choose Our Knurled Roller?
Enhanced Grip: The knurled surface guarantees no belt slip.
Durability: Manufactured from high-grade materials for a long lifespan.
Versatility: Suitable for a wide range of industries and applications.
Performance: Optimizes the efficiency of your belt-driven conveyor system.
