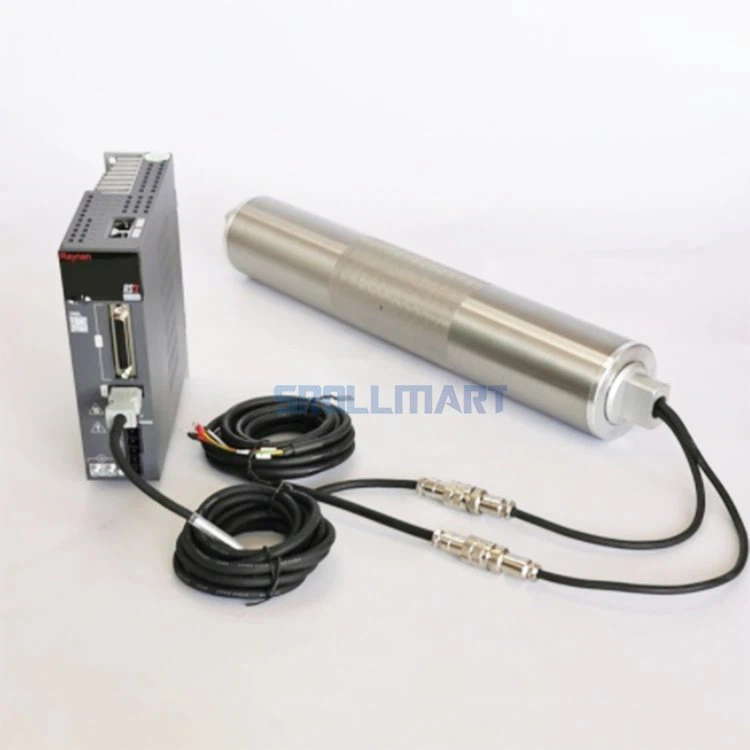

138i Drum Motor Equivalet
Motor type Asynchronous squirrel cage motor, IEC 34 (VDE 0530)
Motor winding insulation class F, IEC 34 (VDE 0530)
Voltage 230/400 V ± 5% (IEC 34/38)
Special voltage according to order requirements
- Product Introduction
For reinforcement shaft with length (SL) exceeding 900 mm
Technical data:
Motor type Asynchronous squirrel cage motor, IEC 34 (VDE 0530)
Motor winding insulation class F, IEC 34 (VDE 0530)
Voltage 230/400 V ± 5% (IEC 34/38)
Special voltage according to order requirements
Frequency 50/60 Hz
Inner shaft sealing system double lip seal, FPM or NBR
Protection grade IP66
Bi-metal switch for overheat protection
Ambient temperature+5 to+40 ° C
Rated power 0.09 to 1.0 kW
Rated speed of outer pipe 0.04 to 2.04 m/s
Rated torque of electric roller 17.8 to 174.4 Nm
*Shell length SL 1600 mm
Product application: security inspection equipment, logistics transportation equipment, airport, express delivery, food processing, packaging equipment
Product model
138i EL=683
138i RL1000 0.55KW 0.4M/s 3 * 380V 50HZ straight outlet
138i Power: 0.75kw Speed: 0.6m/s Voltage: 3 * 380v RL950 EL980 AGL1030 3m cable straight outlet
138i-L64S005A33-RL300
| DM138*3*400V/50Hz | |||||||||
| Power (kw/hp) | Number of Motor Stages | Gear Stages | Gear Ratio | Nominal Belt Speed (m/s) | Torque (Nm) | Traction (N) | Rated Current (A) | Minimum Length (mm) | Minimum Length weight (kg) |
| 0.25/0.34 | 6 | 3 | 58.87 | 0.11 | 162.15 | 2350 | 0.99 | 315 | 15 |
| 53.21 | 0.13 | 135.10 | 1968 | ||||||
| 48.36 | 0.14 | 115.85 | 1679 | ||||||
| 0.37/0.50 | 2 | 3 | 16.87 | 1.19 | 21.87 | 317 | 0.92 | 305 | 14 |
| 15.33 | 1.32 | 19.46 | 282 | ||||||
| 4 | 3 | 58.87 | 0.17 | 150.01 | 2174 | 1.05 | 305 | 14 | |
| 53.21 | 0.19 | 133.31 | 1932 | ||||||
| 48.36 | 0.21 | 119.99 | 1739 | ||||||
| 37.23 | 0.28 | 95.98 | 1391 | ||||||
| 29.33 | 0.35 | 75.00 | 1087 | ||||||
| 26.51 | 0.39 | 66.65 | 966 | ||||||
| 24.10 | 0.42 | 60.03 | 870 | ||||||
| 18.55 | 0.55 | 48.02 | 696 | ||||||
| 2 | 16.87 | 0.60 | 43.75 | 634 | |||||
| 15.33 | 0.67 | 38.92 | 564 | ||||||
| 11.80 | 0.87 | 30.64 | 444 | ||||||
| 6 | 3 | 58.87 | 0.11 | 239.98 | 3478 | 1.50 | 350 | 17 | |
| 53.21 | 0.13 | 199.96 | 2898 | ||||||
| 48.36 | 0.14 | 171.40 | 2484 | ||||||
| 0.55/0.75 | 2 | 3 | 58.87 | 0.34 | 111.51 | 1616 | 1.28 | 305 | 14 |
| 53.21 | 0.38 | 99.08 | 1436 | ||||||
| 48.36 | 0.42 | 89.22 | 1293 | ||||||
| 37.23 | 0.54 | 71.35 | 1034 | ||||||
| 29.33 | 0.69 | 55.75 | 808 | ||||||
| 26.51 | 0.76 | 49.54 | 718 | ||||||
| 24.10 | 0.84 | 44.57 | 646 | ||||||
| 18.55 | 1.10 | 35.67 | 517 | ||||||
| 2 | 16.87 | 1.20 | 32.45 | 471 | |||||
| 15.33 | 1.30 | 58.91 | 419 | ||||||
| 11.80 | 1.70 | 22.77 | 330 | ||||||
| 4 | 3 | 58.87 | 0.17 | 222.94 | 3231 | 1.57 | 350 | 17 | |
| 53.21 | 0.19 | 198.17 | 2872 | ||||||
| 48.36 | 0.21 | 178.37 | 2585 | ||||||
| 37.23 | 0.27 | 142.69 | 2068 | ||||||
| 29.23 | 0.34 | 111.51 | 1616 | ||||||
| 26.51 | 0.38 | 99.08 | 1436 | ||||||
| 24.10 | 0.42 | 89.22 | 1293 | ||||||
| 18.55 | 0.54 | 71.35 | 1034 | ||||||
| 2 | 16.87 | 0.60 | 65.07 | 943 | |||||
| 15.33 | 0.65 | 57.82 | 838 | ||||||
| 11.80 | 0.85 | 45.54 | 660 | ||||||
