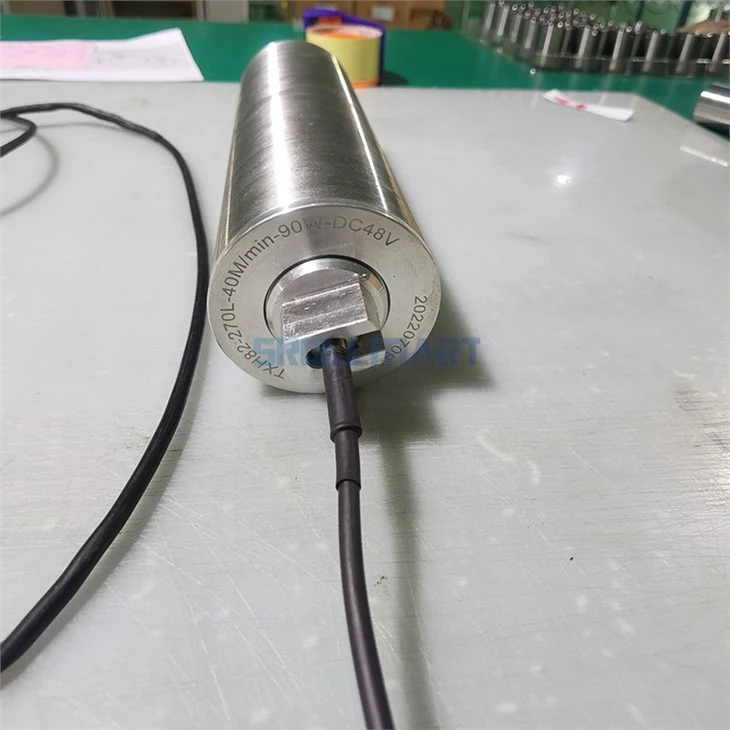

50mm 48v Dc Drum Motor
The micro electric roller is a new type of driving device that places the motor and reducer together inside the roller body. It is mainly used in fixed and mobile belt conveyors, replacing the traditional separate driving device of the motor and reducer outside the driving roller. Compared with the separated drive device, the electric roller has the advantages of compact structure, high transmission efficiency, low noise, smooth operation, good sealing, small space occupation, convenient installation, etc.
- Product Introduction
The micro electric roller is a new type of driving device that places the motor and reducer together inside the roller body. It is mainly used in fixed and mobile belt conveyors, replacing the traditional separate driving device of the motor and reducer outside the driving roller. Compared with the separated drive device, the electric roller has the advantages of compact structure, high transmission efficiency, low noise, smooth operation, good sealing, small space occupation, convenient installation, etc. It is widely used in mining, metallurgy, chemical industry, coal, building materials, power, grain, transportation and other industries.
The DC stepless speed regulation driven miniature electric roller is developed to meet the requirements of today's industry for more flexibility, safety, energy saving and greater power. The advanced high-efficiency NdFeB permanent magnet synchronous motor is used as the power source to overcome the shortcomings of conventional three-phase and single-phase AC electric roller, such as low efficiency, small power, narrow speed range and high temperature rise. It greatly increases the flexibility of conveyor design, And the contact function with external electric control.
| Selection Table | ||||||
| Model Diameter | DGDD Φ50 | DGDD Φ67 | ||||
| Input Voltage Type | DC24V/48V | DC24V/48V AC220V | ||||
| Rated Torque N.m | 0.5 | 1.0 | 1.5 | 4 | 6 | 8 |
| Maximum Torque N.m | 1.5 | 3 | 4.5 | 12 | 18 | 24 |
| Rotating Speed (r/min)/Power W (Watts) | ||||||
| S2：750~S1:1000 | 58 | 116 | 166 | 400 | 600 | 800 |
| S2：600~S1:800 | 46 | 93 | 133 | 320 | 480 | 640 |
| S2：450~S1:600 | 35 | 70 | 100 | 240 | 360 | 480 |
| S2：300~S1:400 | 23 | 45 | 65 | 160 | 240 | 320 |
| S1 belt conveyor continuous conveying weight KG | 4 | 8 | 12 | 22 | 33 | 44 |
| S2 belt conveyor intermittent conveying weight KG | 8 | 16 | 24 | 44 | 66 | 88 |
| Controller | Must be equipped with a special controller to use, can not be directly connected to the power supply | |||||
| Feedback Options | H: HALL M: MAGNETIC ENCODER R: RESOLVER SYNCHRO | |||||
