Can an AC drum motor be used in a high - temperature environment?

Can an AC Drum Motor be used in a high - temperature environment?

As a supplier of AC drum motors, I often encounter inquiries from customers about the performance and applicability of our products in various environments, especially high - temperature settings. This blog aims to provide a comprehensive analysis of whether an AC drum motor can be used in a high - temperature environment.

Understanding AC Drum Motors

Before delving into the high - temperature suitability, let's first understand what an AC drum motor is. An AC drum motor is a compact and integrated drive unit that combines an electric motor, gearbox, and drum into a single unit. This design offers several advantages, such as space - saving, easy installation, and reduced maintenance requirements. AC drum motors are widely used in conveyor systems across different industries, including food processing, logistics, and manufacturing.

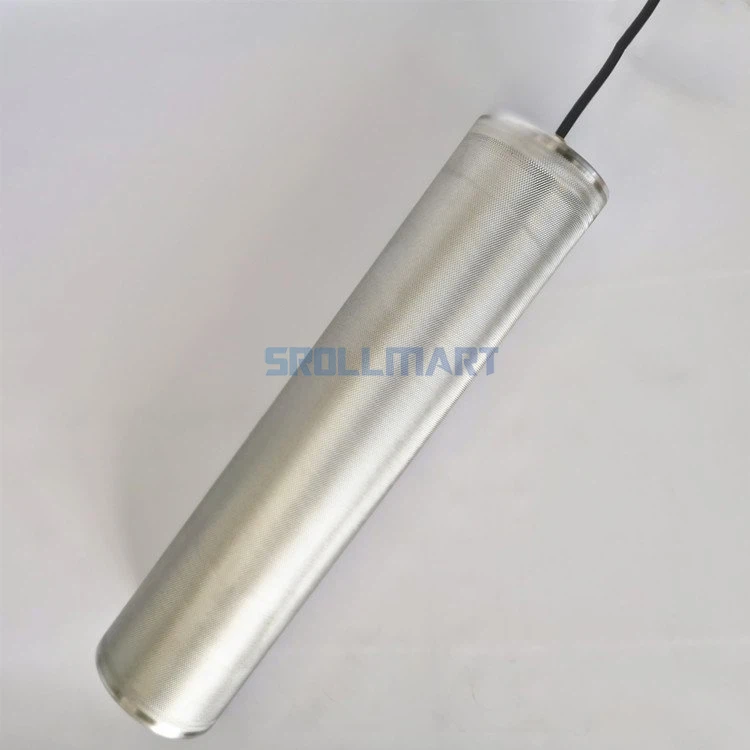

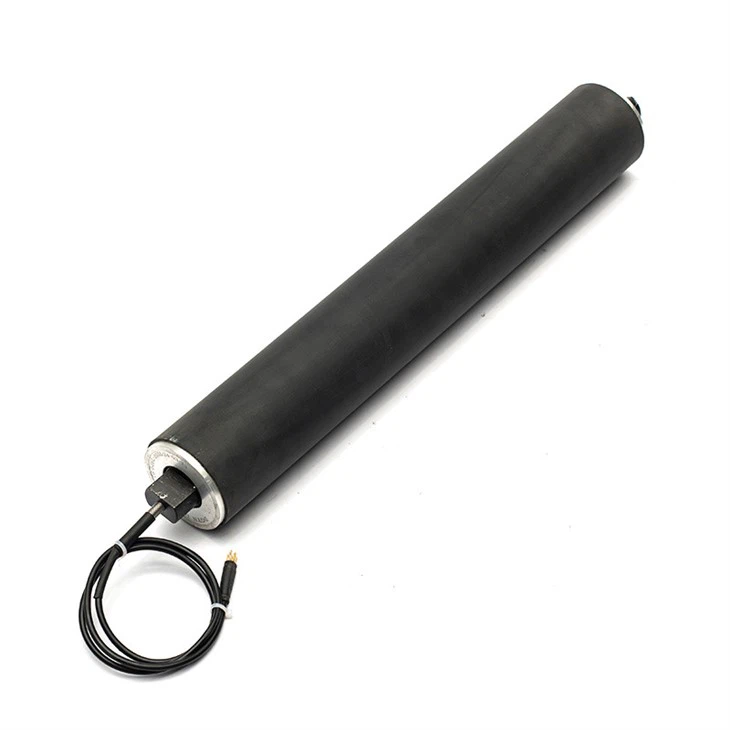

Our company offers a range of AC drum motors, including the 50mm Black Rubber Drum Motor For Conveyor, 80mm AC Drum Motor, and 82mm Ac Drum Motor. These products are designed to meet different load and speed requirements, providing reliable power for conveyor operations.

Factors Affecting AC Drum Motors in High - Temperature Environments

Several factors need to be considered when evaluating the use of an AC drum motor in a high - temperature environment:

1. Motor Insulation: The insulation of the motor windings is crucial. High temperatures can cause the insulation material to degrade over time, leading to short - circuits and motor failure. Most standard AC drum motors are designed with insulation materials rated for a certain temperature range. For example, class B insulation can typically withstand temperatures up to 130°C, while class F insulation can handle up to 155°C. If the operating temperature exceeds the rated temperature of the insulation, the lifespan of the motor will be significantly reduced.

2. Lubrication: The lubricant in the gearbox of the drum motor is also affected by high temperatures. At elevated temperatures, the viscosity of the lubricant can decrease, reducing its ability to provide proper lubrication and protection for the gears and bearings. This can lead to increased friction, wear, and noise, and ultimately result in mechanical failure of the gearbox.



3. Thermal Expansion: High temperatures cause materials to expand. In an AC drum motor, this thermal expansion can affect the alignment of components, such as the motor shaft and the gearbox. Misalignment can lead to additional stress on the bearings and gears, increasing the risk of premature failure.

4. Electrical Components: Other electrical components in the drum motor, such as capacitors and switches, can also be sensitive to high temperatures. Excessive heat can cause these components to malfunction, affecting the overall performance and reliability of the motor.

Performance of AC Drum Motors in High - Temperature Environments

In general, standard AC drum motors are designed for normal operating temperatures, usually in the range of - 20°C to 40°C. When used in a high - temperature environment, say above 40°C, the performance of the motor will be affected:

1. Reduced Efficiency: As the temperature rises, the resistance of the motor windings increases. According to Ohm's law (V = IR), for a given voltage, an increase in resistance leads to a decrease in current. This results in a reduction in the motor's output power and efficiency. The motor may draw more current to maintain the same load, which can further increase the temperature and cause overheating.

2. Shortened Lifespan: As mentioned earlier, high temperatures can cause degradation of insulation materials, lubricants, and other components. This accelerates the wear and tear of the motor, reducing its lifespan. For example, a motor that is expected to last for 10 years under normal operating conditions may only last for 2 - 3 years in a high - temperature environment.

3. Increased Maintenance Requirements: Due to the accelerated wear and potential for component failure, the maintenance requirements for AC drum motors in high - temperature environments are significantly higher. Regular inspections, lubricant changes, and component replacements are necessary to ensure the continued operation of the motor.

Solutions for Using AC Drum Motors in High - Temperature Environments

Although standard AC drum motors face challenges in high - temperature environments, there are several solutions available:

1. High - Temperature Insulation: Motors can be equipped with high - temperature insulation materials, such as class H insulation, which can withstand temperatures up to 180°C. This helps to protect the motor windings from the damaging effects of high temperatures.

2. Special Lubricants: Using high - temperature lubricants in the gearbox can help maintain proper lubrication at elevated temperatures. These lubricants are formulated to have a higher viscosity index, ensuring that they retain their lubricating properties even at high temperatures.

3. Cooling Systems: Installing cooling systems, such as fans or heat sinks, can help dissipate the heat generated by the motor. Forced - air cooling can effectively reduce the temperature of the motor, improving its performance and lifespan.

4. Thermal Monitoring and Protection: Incorporating thermal sensors and protection devices in the motor can help prevent overheating. These sensors can detect the temperature of the motor and automatically shut down the motor if the temperature exceeds a safe limit.

Conclusion

In conclusion, while standard AC drum motors are not designed for high - temperature environments, with the appropriate modifications and precautions, they can be used in such settings. Our company offers customized solutions for customers who require AC drum motors for high - temperature applications. We can provide motors with high - temperature insulation, special lubricants, and cooling systems to ensure reliable operation in challenging environments.

If you are considering using an AC drum motor in a high - temperature environment, or have any other questions about our products, we encourage you to contact us for a detailed discussion and to explore the best solutions for your specific needs. Our team of experts is ready to assist you in making the right choice for your conveyor system.

References

• "Electric Motor Handbook", by Paul C. Krause, Oleg Wasynczuk, and Scott D. Sudhoff.
• "Mechanical Design of Machine Elements and Machines: A Failure - Prevention Perspective", by Robert L. Norton.
